Chain Link Fence on a Poured Concrete Base in Mississauga
About 60 linear feet of 4 ft galvanized chain link with one gate, running down a narrow side yard in Mississauga on a poured concrete base that carries the posts and holds back the grade at the same time.
Location
Mississauga, Ontario
Length
About 60 linear feet
Height
4 ft
Gates
One
Material
Galvanized chain link
Base
Poured concrete, structural and retaining
What we built

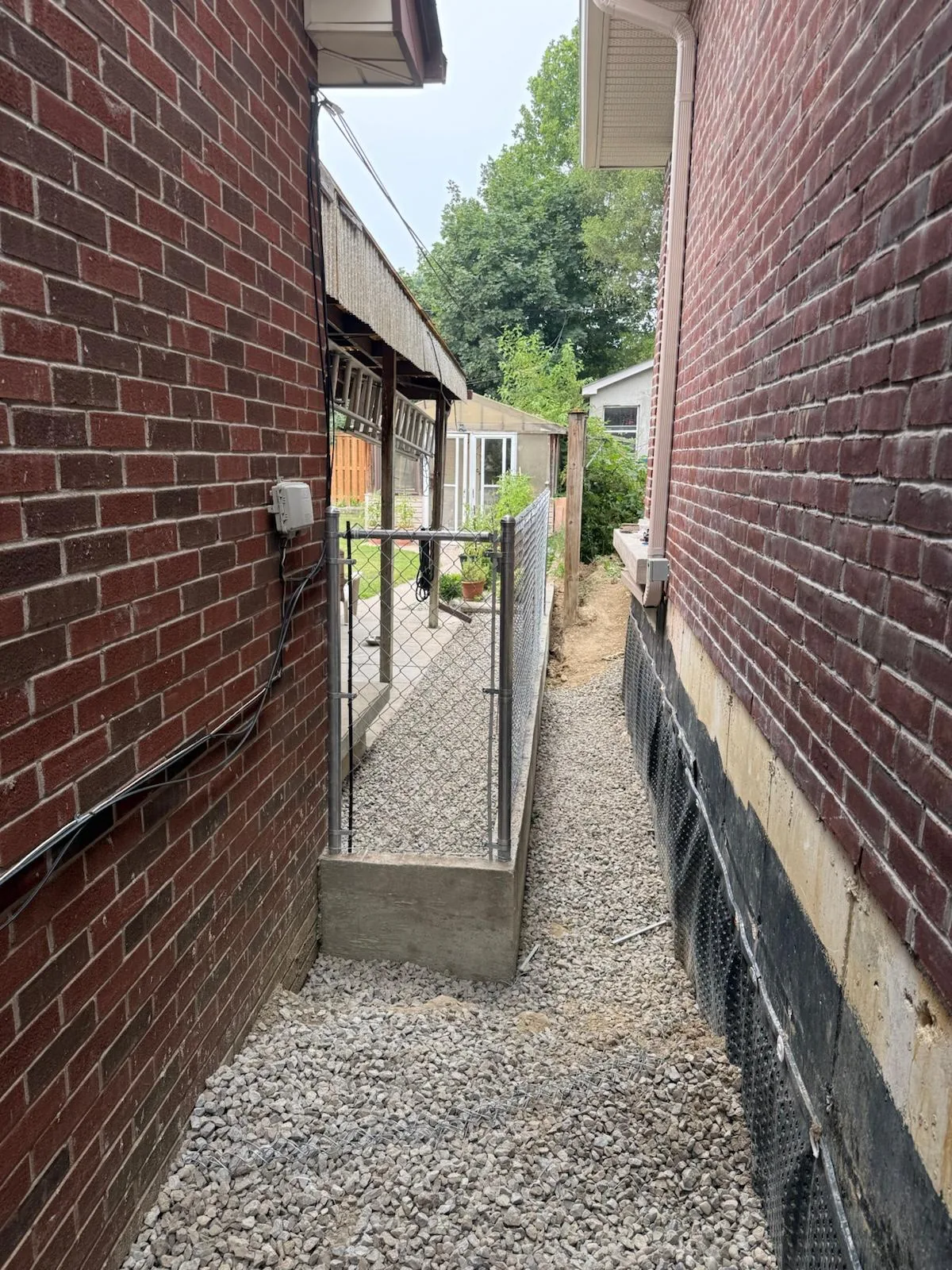

The side yard here is the gap between two houses, and the ground on one side sits higher than the other. A fence dropped straight into that with posts dug in the normal way would have had nothing solid to sit in, and nothing holding the higher side back either.

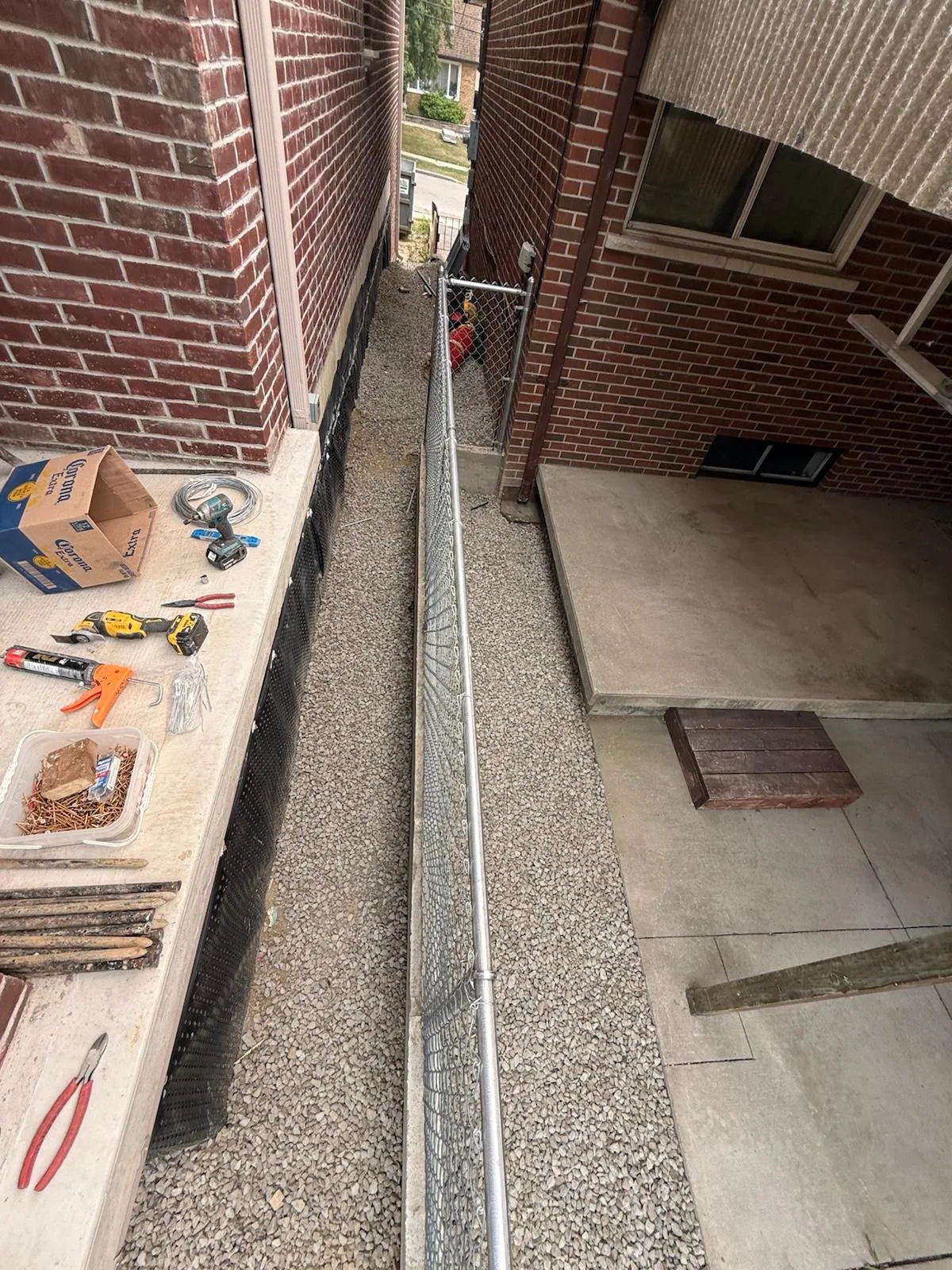

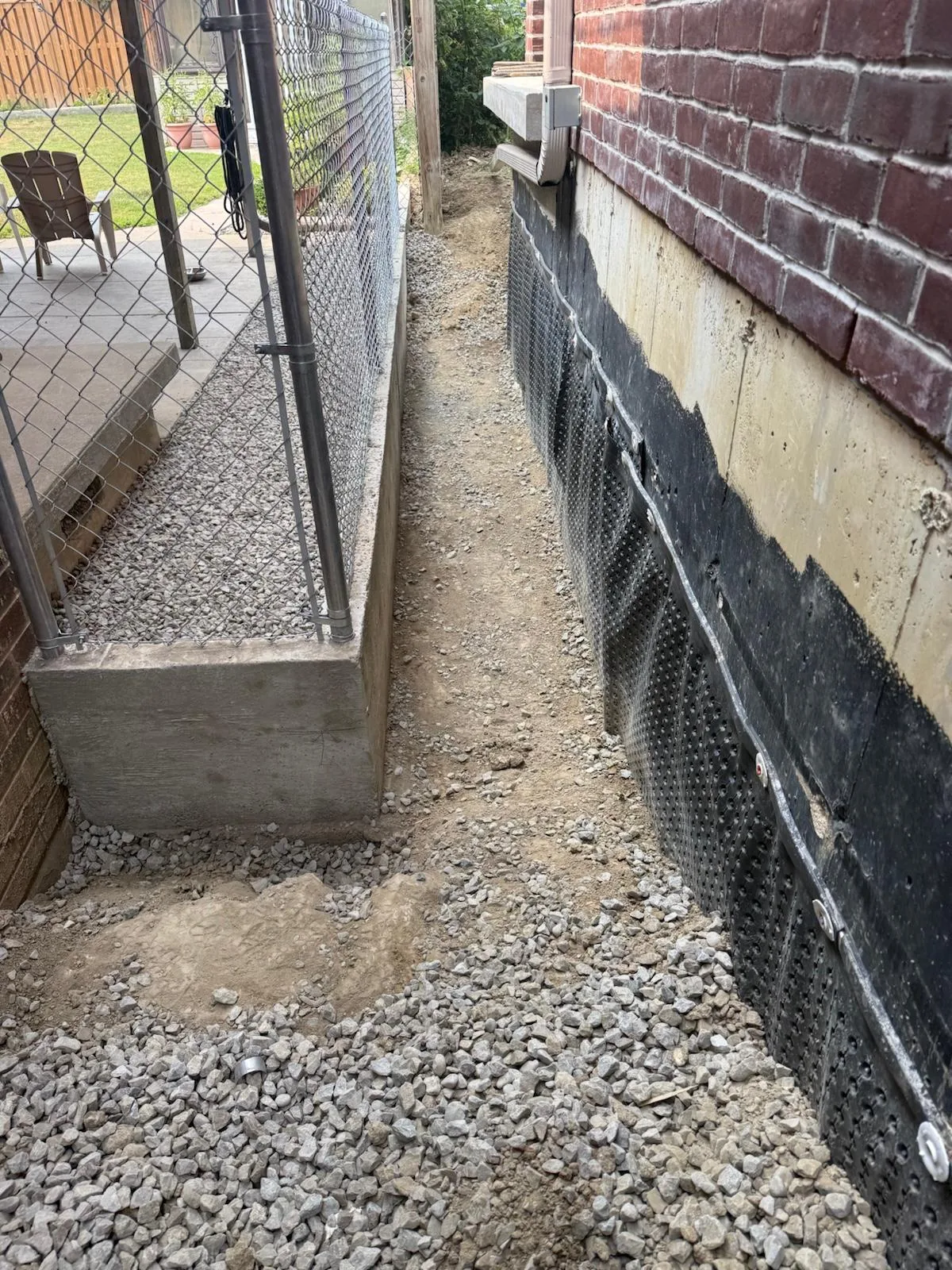

So we poured a concrete base along the line first. It does two jobs. The chain link posts are set into it, which gives them a far better footing than a narrow post hole in disturbed ground. And it acts as a low retaining wall, holding back the gravel and grade on the high side so the fence line stays where we put it.
That mattered here because the foundation alongside had been waterproofed and backfilled with clear stone. Loose stone against a fence line is the kind of thing that slumps and pushes posts out of plumb over a few winters. The concrete base keeps it where it belongs and keeps the drainage doing its job.

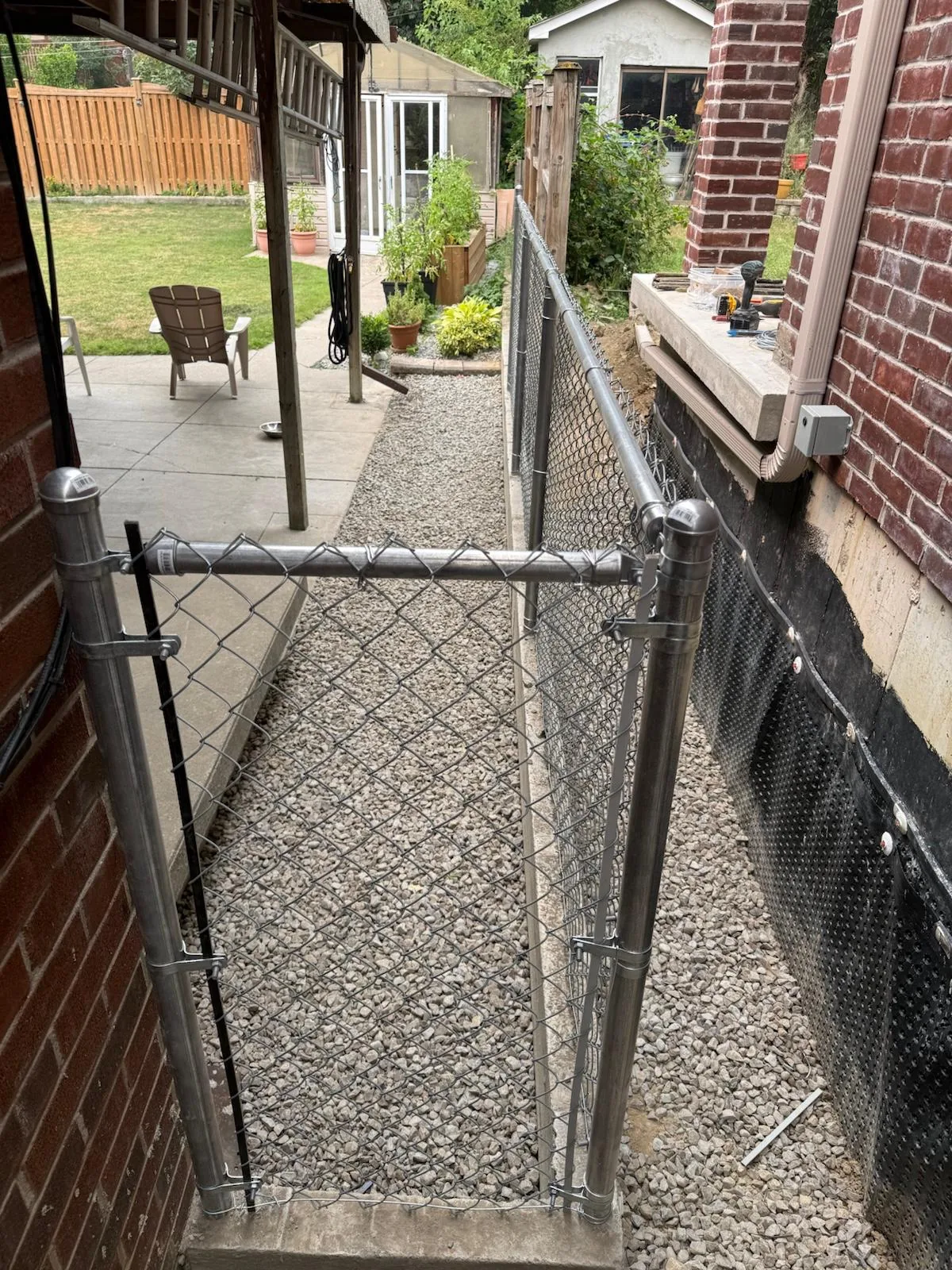

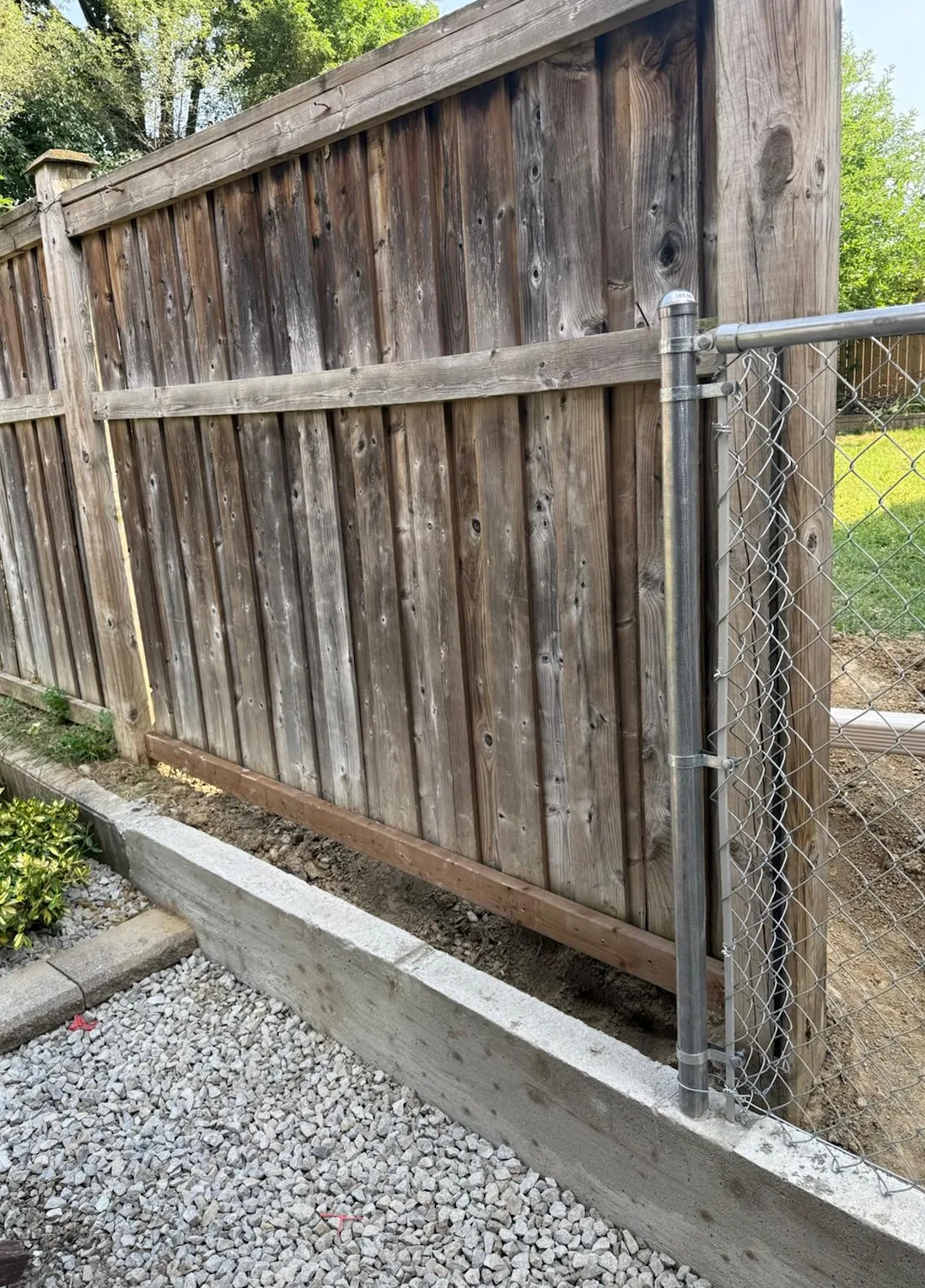

About 60 linear feet of 4 ft galvanized chain link with a top rail and one gate, tied in at the back where it meets the existing wood fence.
The finished project
